How to fix Coiled Wire
Where and how to fix a coiled wire.
Attaching Coiled wire to Motorcycle
Place to fix a coiled wire
![](https://www.hit-air.com/archives/005/201807/c4432729b05eb0d1fe352fe0547667d3.png)
![](https://www.hit-air.com/archives/005/201807/9aa4e3c39c92be62280cbf209944fab5.png)
How to fix a coiled wire.
![](https://www.hit-air.com/archives/005/201807/654698528e0cee003469b3a629a61b2d.png)
Wind the protector tube round a frame, adjust its length and cut the excess tube.
![](https://www.hit-air.com/archives/005/201807/fdeb3030e2a1c38ecbf21856c87e816d.jpg)
![](https://www.hit-air.com/archives/005/201807/b30ee365f9590175c13661362a4c0e80.png)
Pass the coiled wire through the protector tube.
![](https://www.hit-air.com/archives/005/201807/bc6a7a471781c15cb2d433733e1753a9.png)
Temporarily fix the coiled wire in the loop setter and adjust its length.
![](https://www.hit-air.com/archives/005/201807/ce9d3838f4a514abac2055d48a128a19.jpg)
![](https://www.hit-air.com/archives/005/201807/889542ffe1632488b9b1083e3891d1b6.png)
Determine the length of the coiled wire by standing on the pegs to make the coiled wire fully stretched.
![](https://www.hit-air.com/archives/005/201807/1a1cd925194d6a0e79ac1451500f5807.png)
Lastly, fix the wire firmly with the loop setter, knot it tightly, cut it leaving 2cm and cap the cut end.

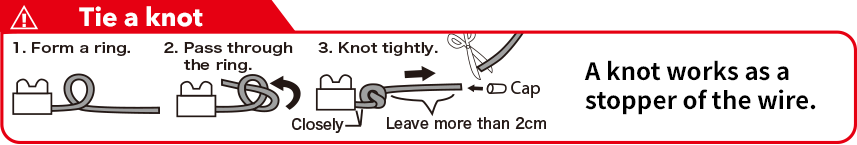

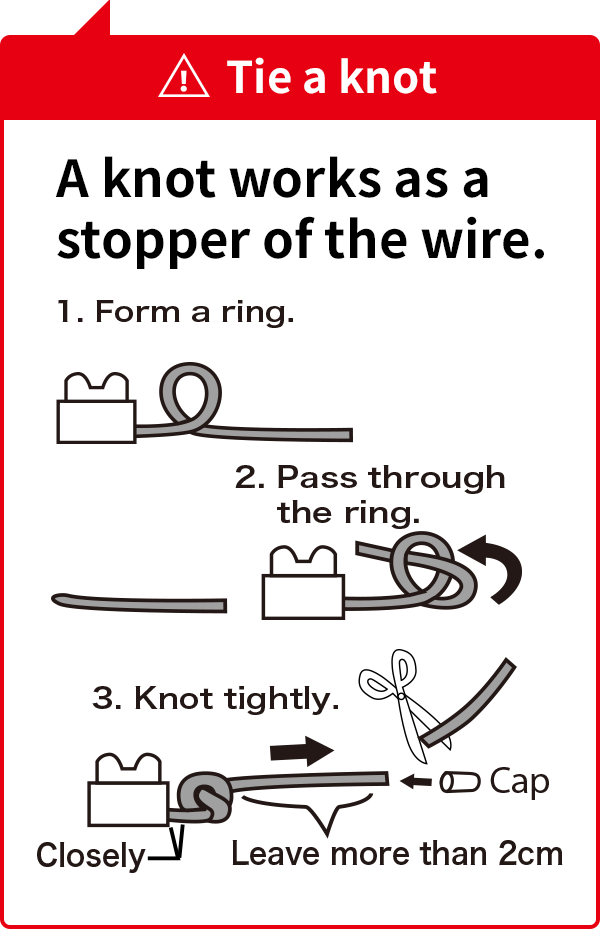

A knot works as a stopper of the wire.
Without a knot, the wire may come off the Hit-Air at its activation and the airbag will not inflate.
![](https://www.hit-air.com/archives/005/201807/44a088749e9e260ae140fc46b17aa3dc.png)
Put the seat back.
![](https://www.hit-air.com/archives/005/201807/2cf88551df98da29c0ed7563e2a60896.jpg)
![](https://www.hit-air.com/archives/005/201807/72c08ec57794be978d16729825419564.png)
Don't fix a coiled wire to any part where it would disturb driving the motorcycle, where it A
would lead to damage a part of the motorcycle, where it may come off when it is pulled Caution and where it becomes hot (over 60°C) such as the engine or muffler.
Buckle type Connecor holder
![](/media/005/201807/support_coiled_wire_b01_p07.png)
To be used to prevent a coiled wire, while not in use, from touching the engine, muffler or any part of the motorcycle.
How to adjust the length of a coiled wire.
Stand up on the pegs so as to make the coiled wire fully stretched.
![](https://www.hit-air.com/archives/005/201807/a3745ff35a2cb8e20b2f0c09a490f4a2.png)
Standing with a stretched wire.
Stand up on the pegs so as to make the coiled wire fully stretched.
![](https://www.hit-air.com/archives/005/201807/5e4ccbeb27ee84beb138307468e43b59.png)
Standing with a slack wire.
This may cause a delay of activation.
![](https://www.hit-air.com/archives/005/201807/b8f848f98182633c897fc65b489969e2.png)
Standing in a half crouching position even if the wire is at full stretch.
This may cause a malfunction of the airbag.
Scooter example
![](https://www.hit-air.com/archives/005/201807/0c013bf67bd6024f7eaa6507c0d52c2b.png)
Scooter example 1
A wire fixed to the neck of the handle.
Standing on the scooter and the wire is at full stretch
![](https://www.hit-air.com/archives/005/201807/07b1c9e673909c4d1679a9e2661d3694.png)
Scooter example 2
A wire fixed to the seat.
Standing on the ground and the wire is at full stretch.
![](https://www.hit-air.com/archives/005/201807/f4c56ccf5d85ca582247e8afe8f552a9.png)
Scooter example 3
A wire fixed to the rear seat.
Standing on the rear step in a half crouching position and the wire is at full length
Where to adjust and fix a coiled wire may vary depending on the size and make of the
motorcycle as shown above.
Motorcycle mpdels / Attachment example of coiled wire.
