Airbag Products
MLV2-H
Black/M Front
Black/M Back
Navy/M Front
Navy/M Back
Key Box 60cc(M,L)
Black/M : After Front
Black/M : After Back
Black/S Front
Black/S Back
Black/S : Key Box 50cc
Black/S : After Front
Black/S : After Back
Black/XS Front
Black/XS Back
Black/XS : Key Box 50cc
Black/XS : After Front
Black/XS : After Back
Illustration of the airbag deployment
MLV2-H
| Color | Black, Navy |
|---|---|
| Size | XS, S, M, L |
| CO2 cartridge |
50cc 60cc |
| Weight | XS : 1.2kg (CO2 cartridge 50cc) *Size XS corresponds to a minimum weight of 25kg. S : 1.4kg (CO2 cartridge 50cc), M : 1.5kg (CO2 cartridge 60cc), L : 1.6kg (CO2 cartridge 60cc) |
| Material | 600D Polyester, Polyester mesh, Nylon Ripstop Airbag Tube : Polyurethane |
| Option | Chest Protector Harness Side Protector |
| Remarks | This Airbag cannot be washed. How to care |
Certified by EN1621-4:2013 which is the only European standard for airbag vests.
Standard model of all-in-one airbag / harness type.
Air tube of the airbag is improved and chest padding is now attachable. Airbag is placed at the back of the key box to strengthen a shock buffering function. S-System is installed.
Shock absorbing material which is placed behind the CO2 cartridge provides additional protection with the airbag. “VISCO ELASTAN” passes the impact test of EN13594:2015.
Product Details
Airbag System

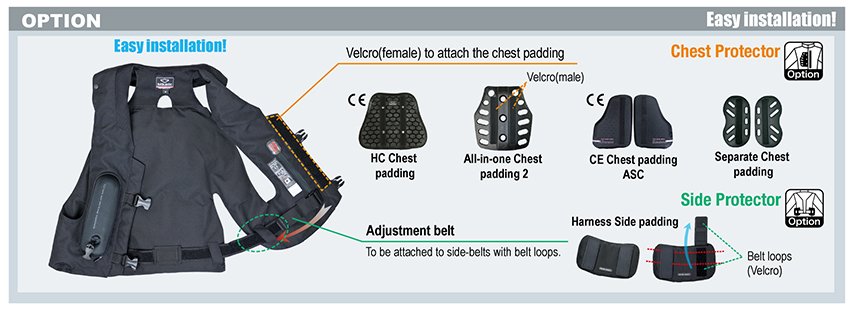

OPTIONAL PROTECTOR
Size table (EU,US / Unit : cm)
| Sizes | XS | S | M | L |
|---|---|---|---|---|
| Height | 135〜150 | 150〜165 | 160〜185 | 175〜195 |
| Chest | 65〜82 | 80〜95 | 86〜110 | 105〜120 |
| Waist | 55〜68 | 65〜78 | 72〜94 | 84〜105 |
※Styles and specifications may change without notice.
